Oasis Focuser Rose is the second generation of the Astroasis electronic focuser. On the basis of the first generation, the second generation has made important improvements and is a perfect electronic focuser for astrophotography.
Introduction:
Compared with the first generation, the second generation has made the following improvements:

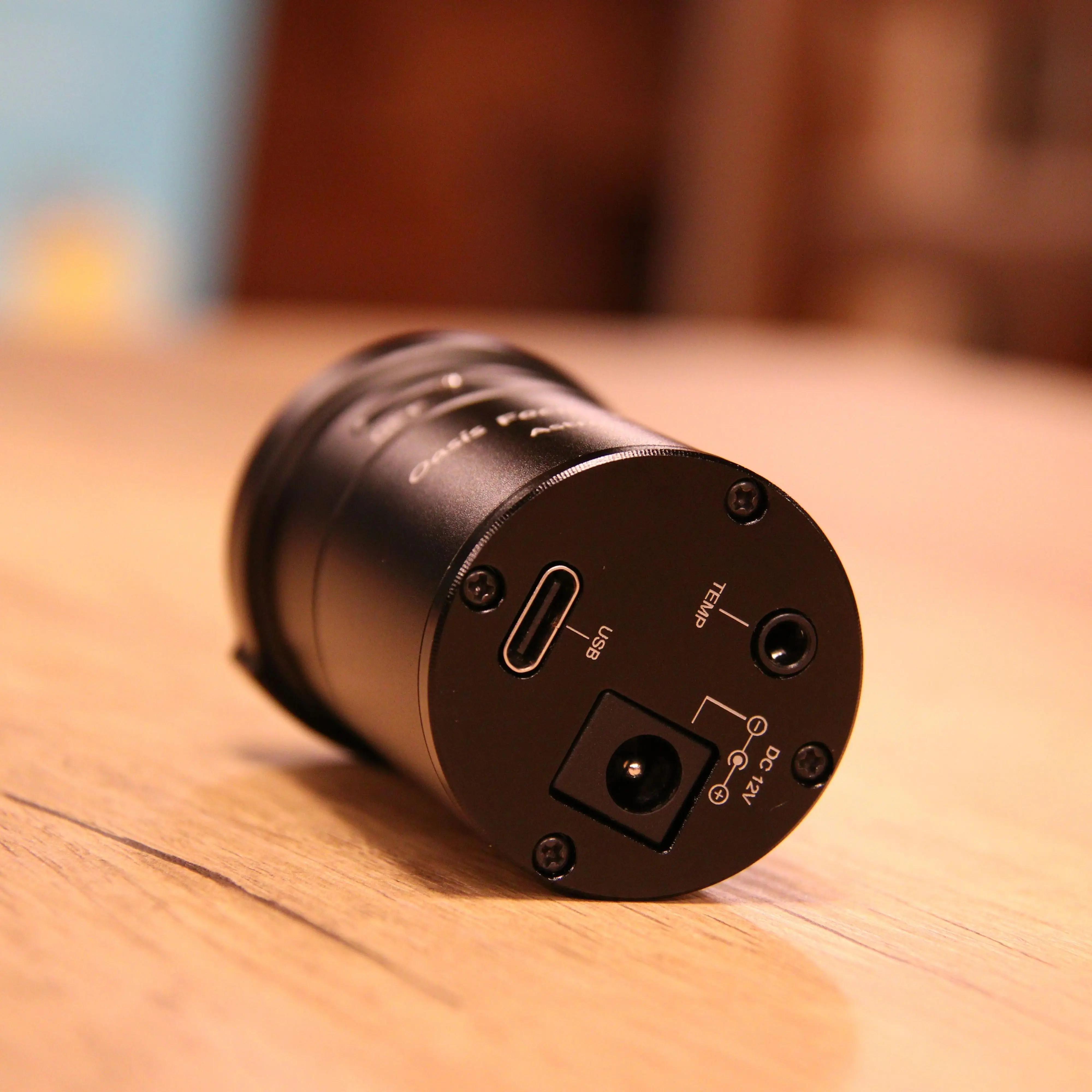

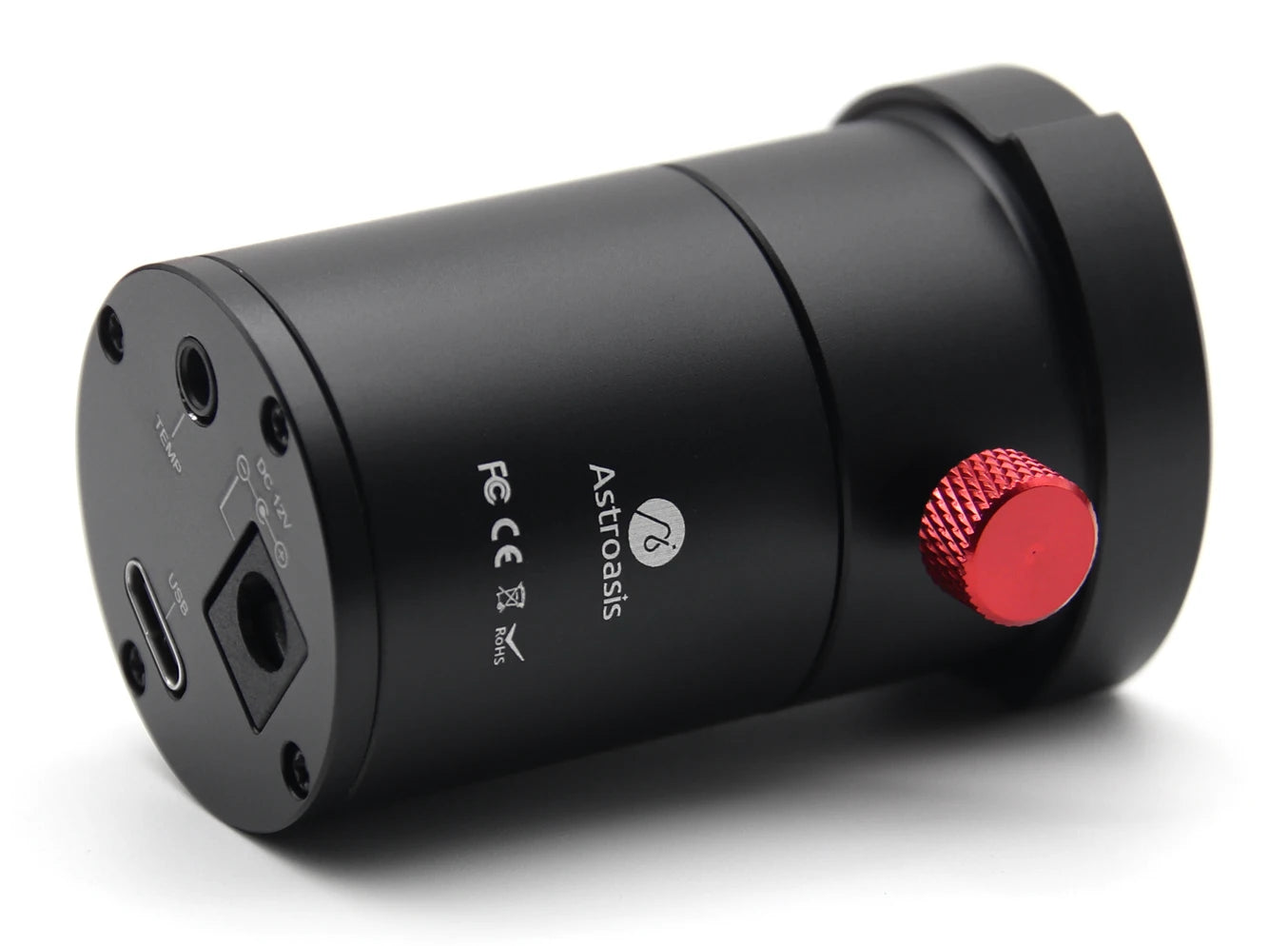

1、Convenient power supply — It can be powered by either the USB Type-C port or the 12V DC port.
2、Stall detection— Motor stall detection feature prevents the telescope focuser and the gears from being damaged in case the telescope focuser moves out of the minimum or maximum range or in other cases that are not expected.
3、Built-in heating module — The built-in heating module allows the focuser to work in low ambient temperature conditions for North China, Europe, North America users when capturing in winters. The heating module can be controlled at a constant temperature when heating so it's easy to use.

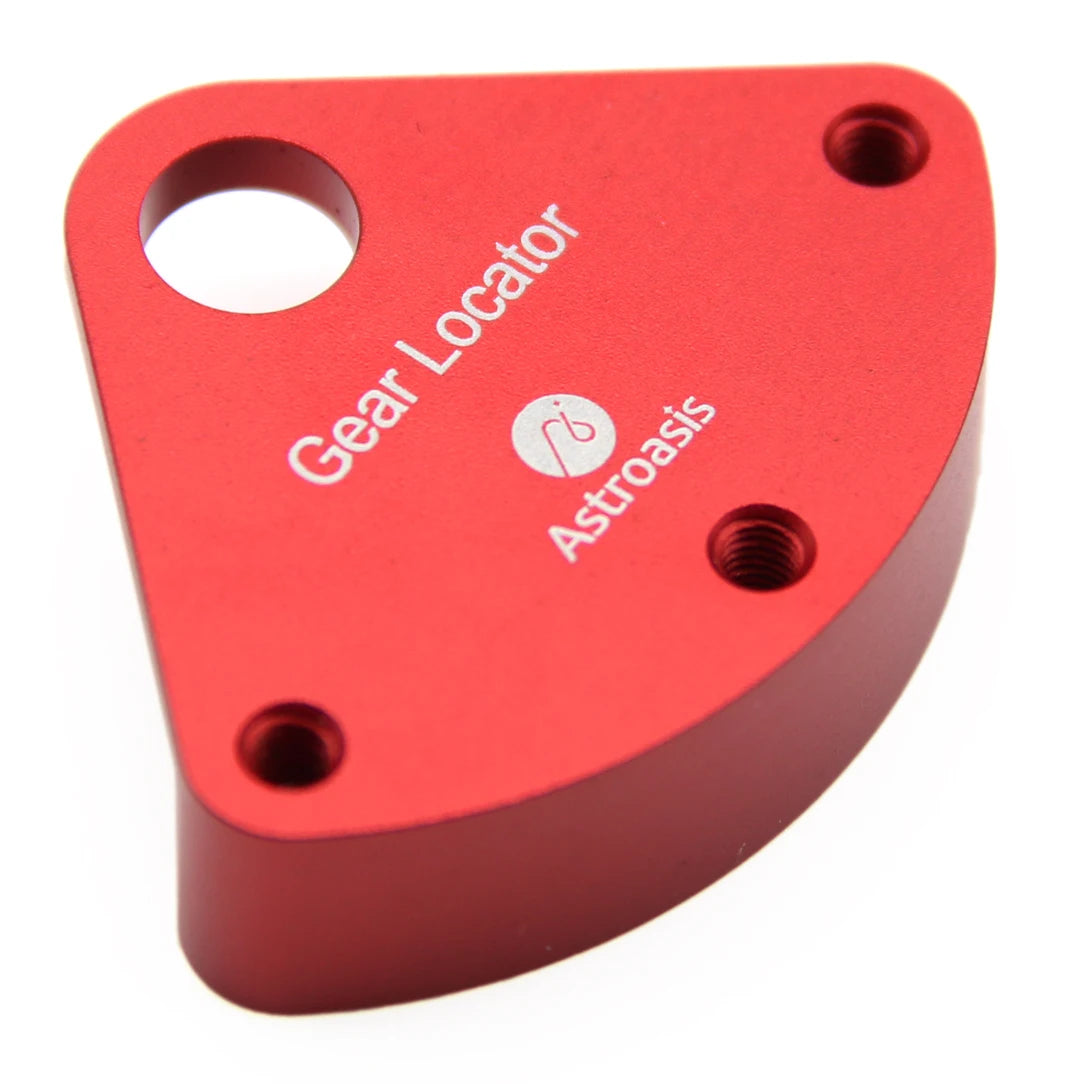

4、Gear locator— The gear locator helps user to install the gear in the right place.
Gear Locator
5、Improved reliability — Motor is upgraded to improve reliability. PCB is re-desigened to improve reliability of power module, USB/DC/Temperature sockets etc.
6、Better connection method — The connection method of the fixed-part and the rotationable part is improved. The connection of the fixed-part and the rotationable part is more stable.
7、More compact dimensions — Compared to the first generation, the second generation Oasis focuser body has a 14.5mm reduction in the length and a 4mm reduction in the diameter of the rotationable part.

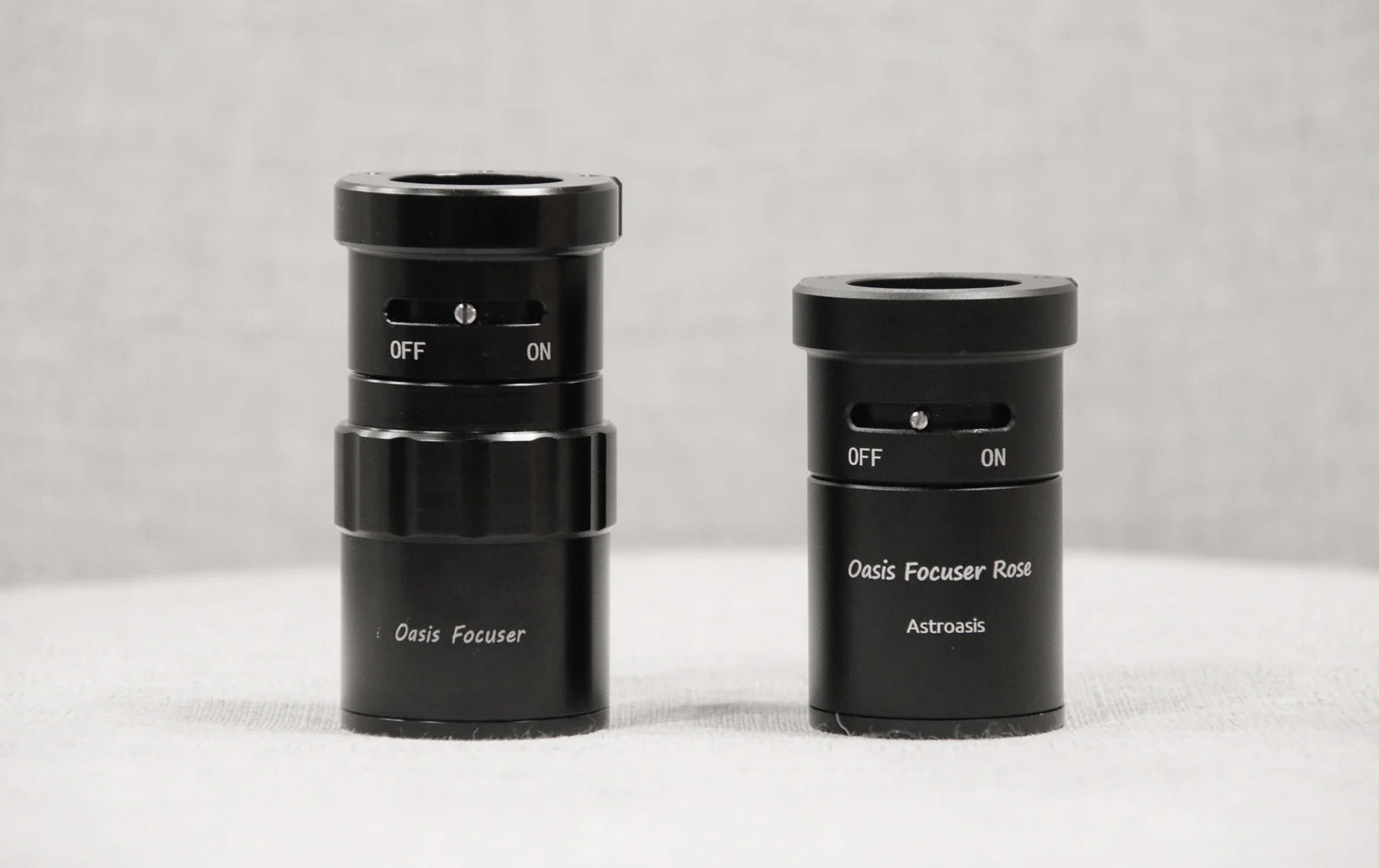

Old version VS new version

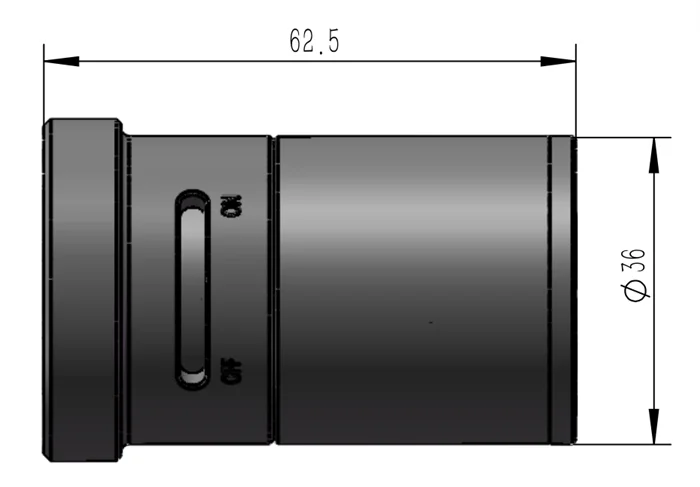

Dimensions of Oasis Focuser Rose
Oasis Focuser Rose inherits all the excellent features of the first generation Oasis Focuser, including:
Clutch function — Easy and fast switching between motor and manual focusing
Bluetooth function — Mobile devices such as mobile phones can be used to control the focuser via Bluetooth
High precision — Micron precision for each motor step
Ability to drive heavy load — Testing indicates that it can driver net loads more than 5Kg
Excellent backlash compensation performance — Gears and rigid components provide excellent backlash compensation performance
Easy to install — Easy to install or uninstall focuser body. Only one screw needs to be used to install or uninstall focuser body. And it can be installed on many telescope focusers
High integrated — Except for the ambient temperature probe, all functions and components (including motor, controller board etc.) are implemented and integrated in the single compact focuser body
More introduction about the Oasis Focuser Rose please refer to our website: https://www.astroasis.com/en/focuser/69.html
Shopping Guide:

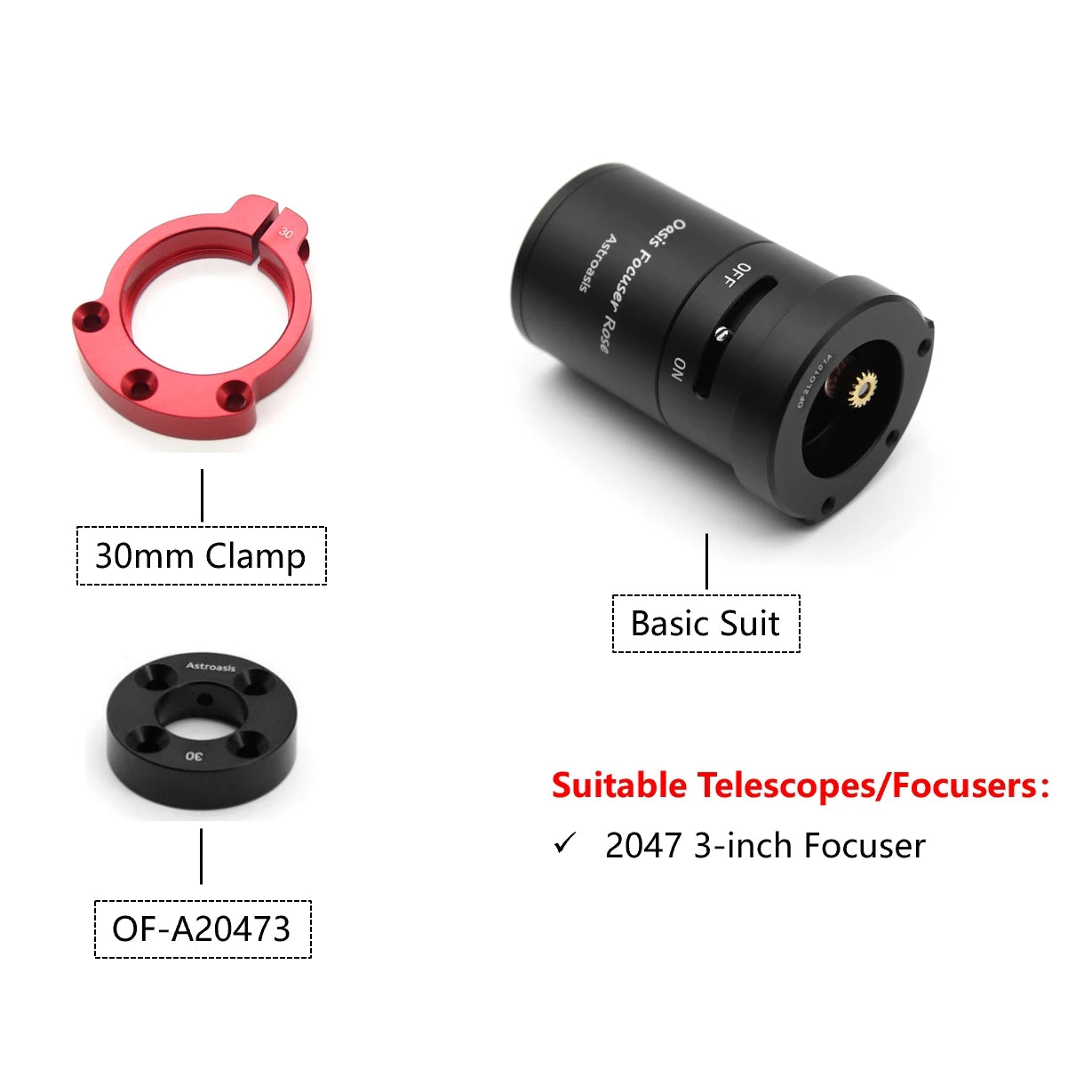

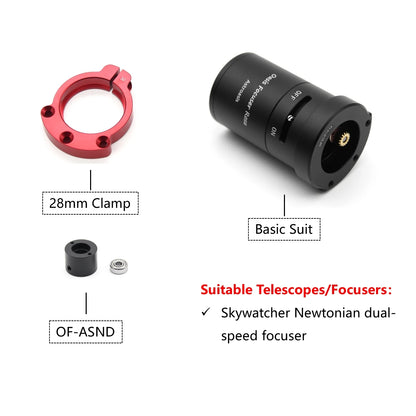

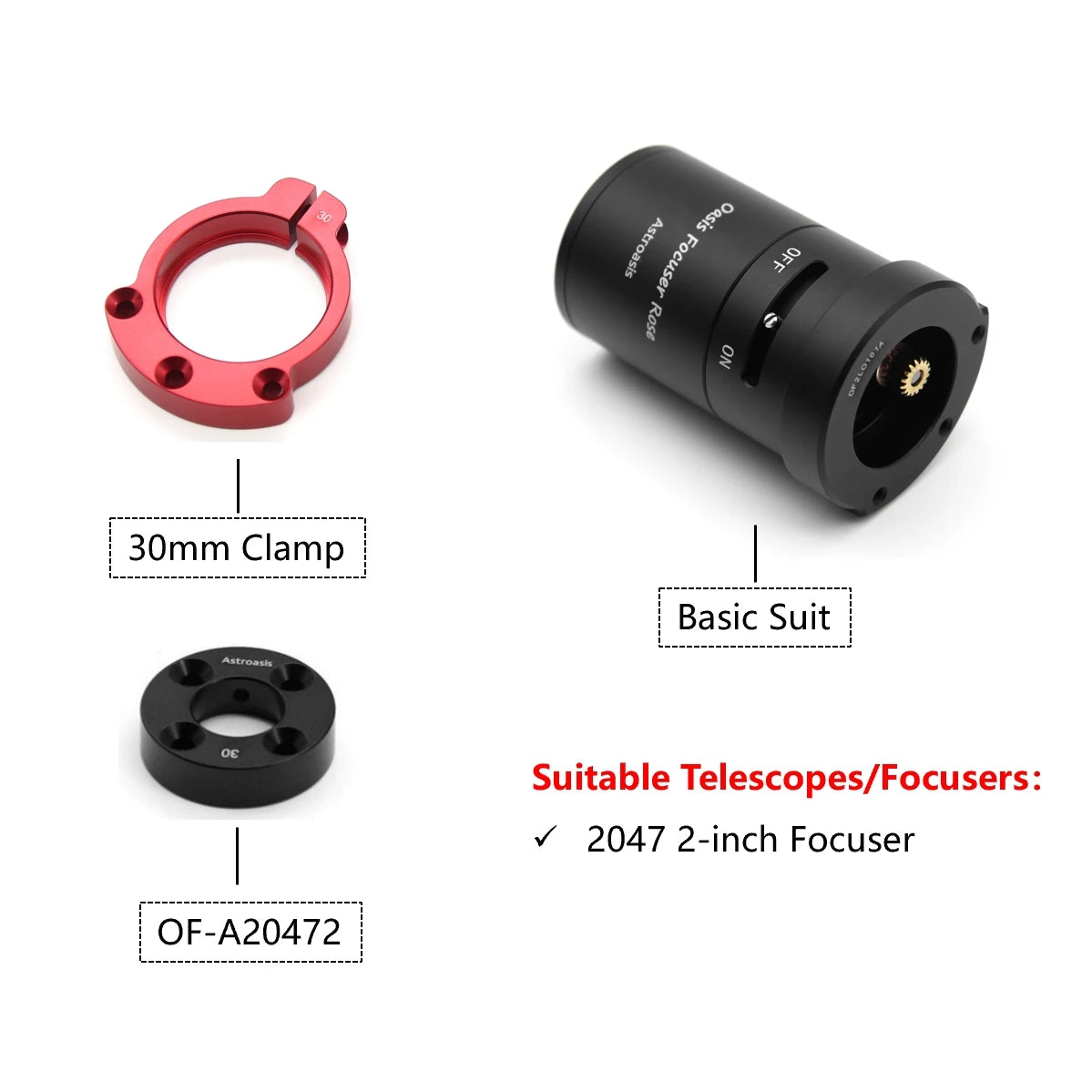

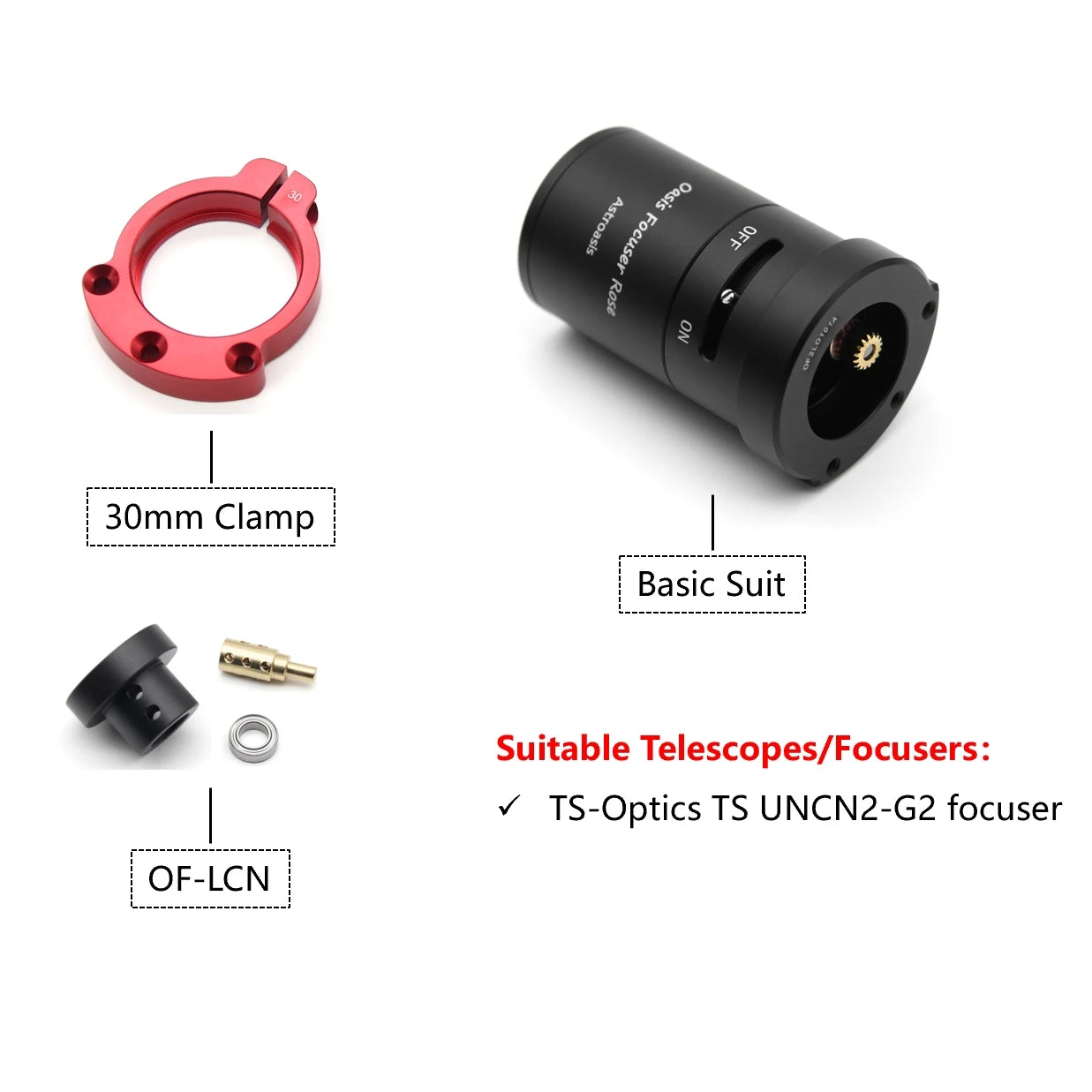

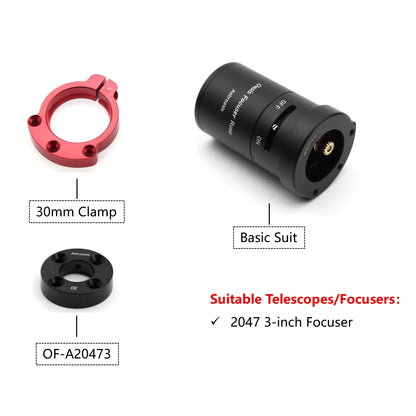

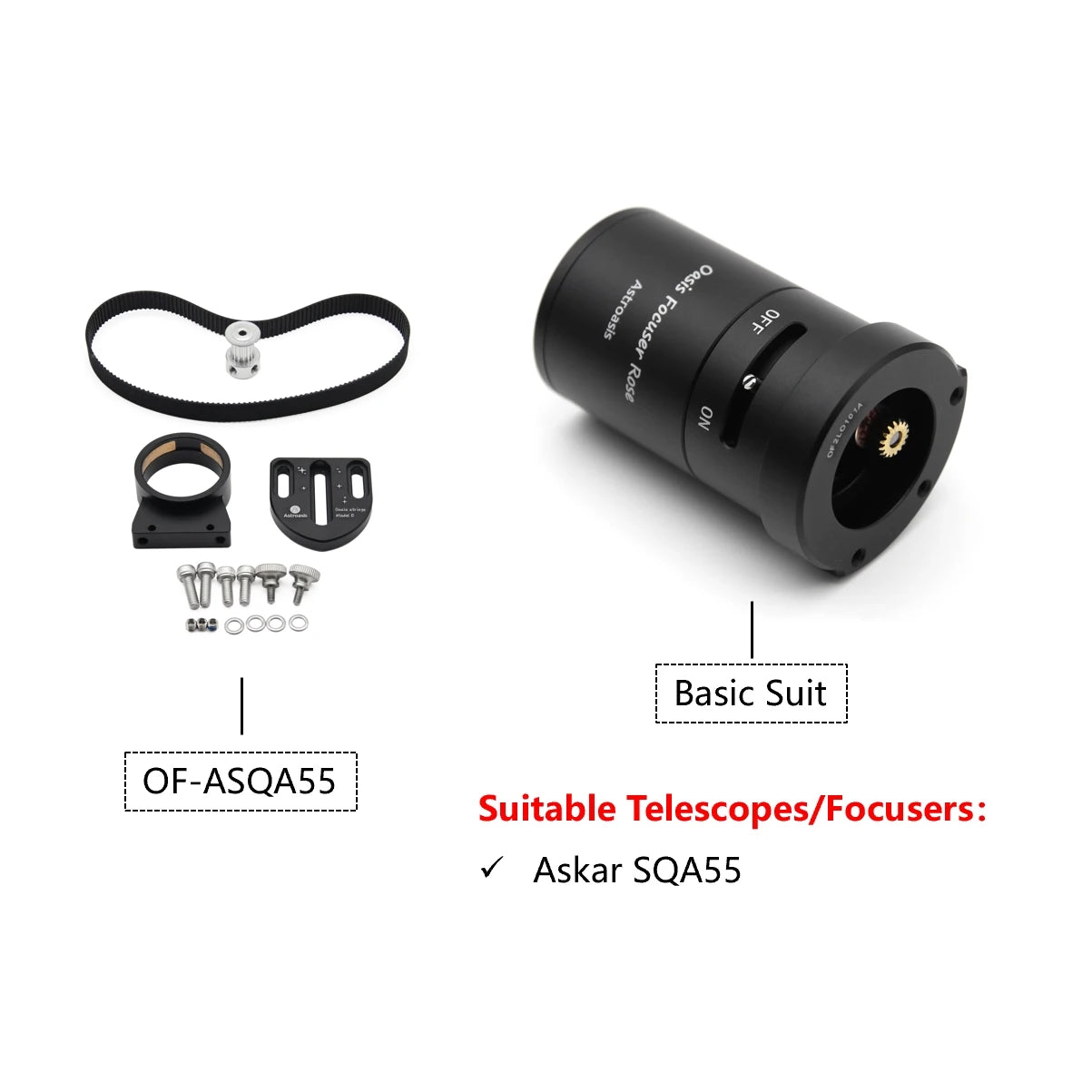

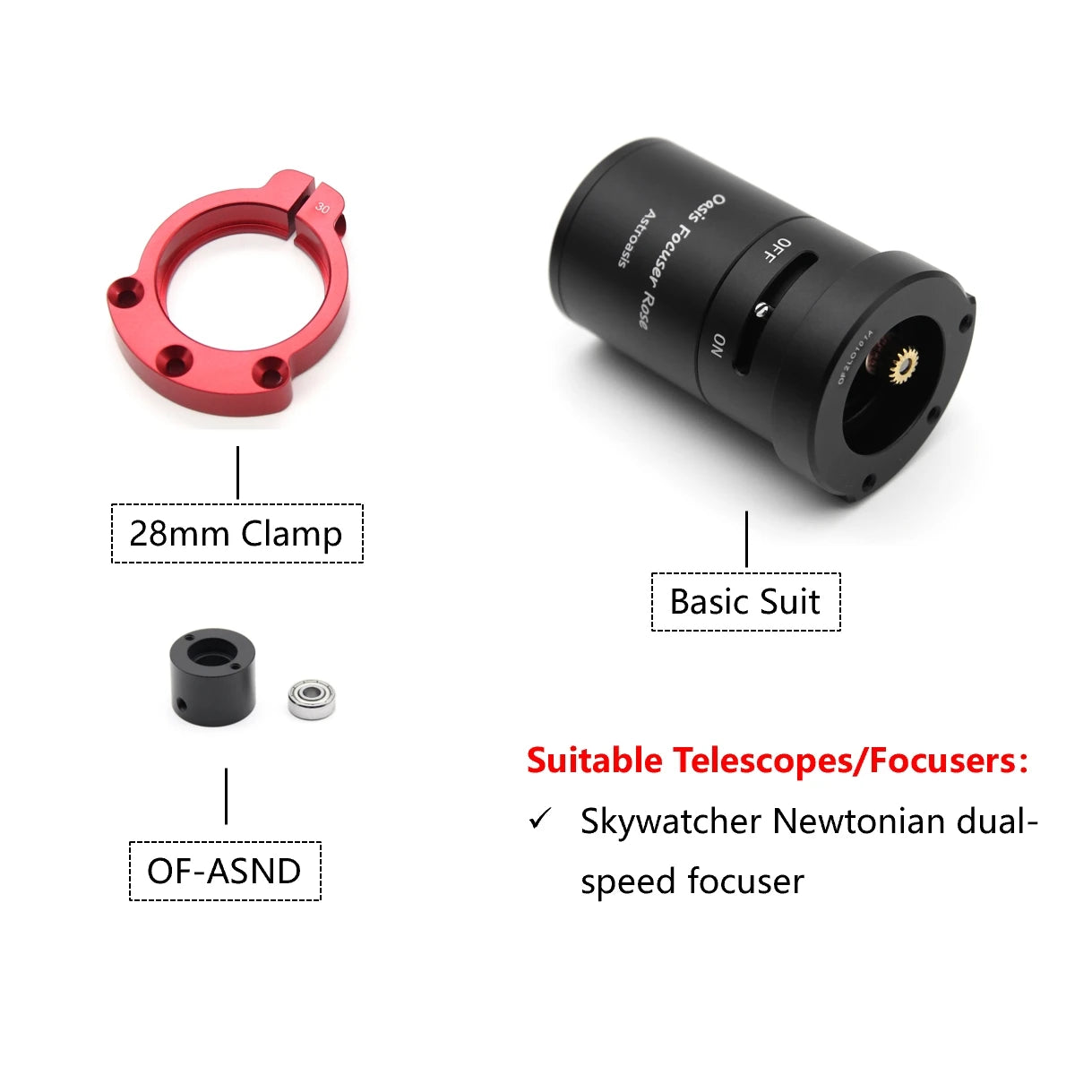

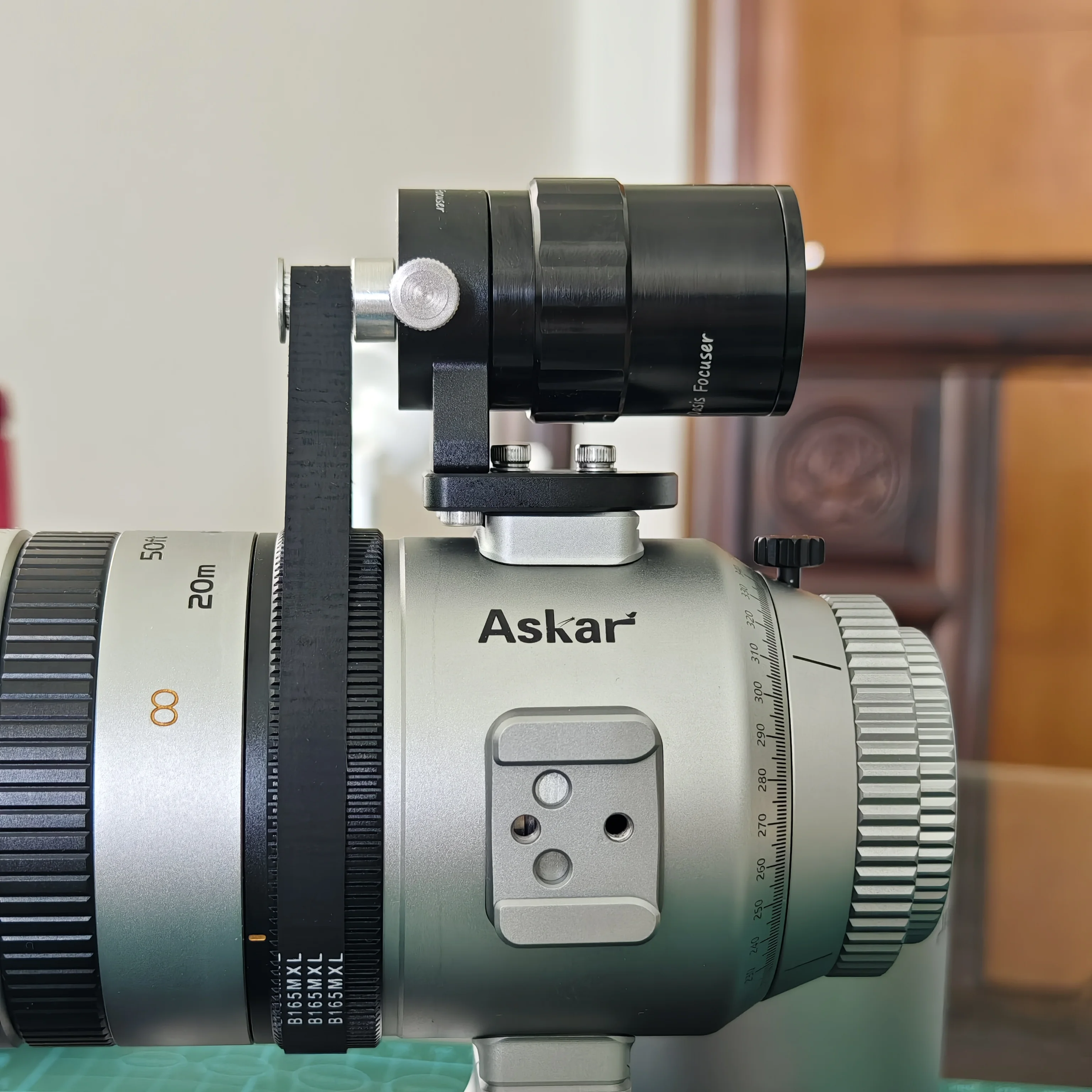

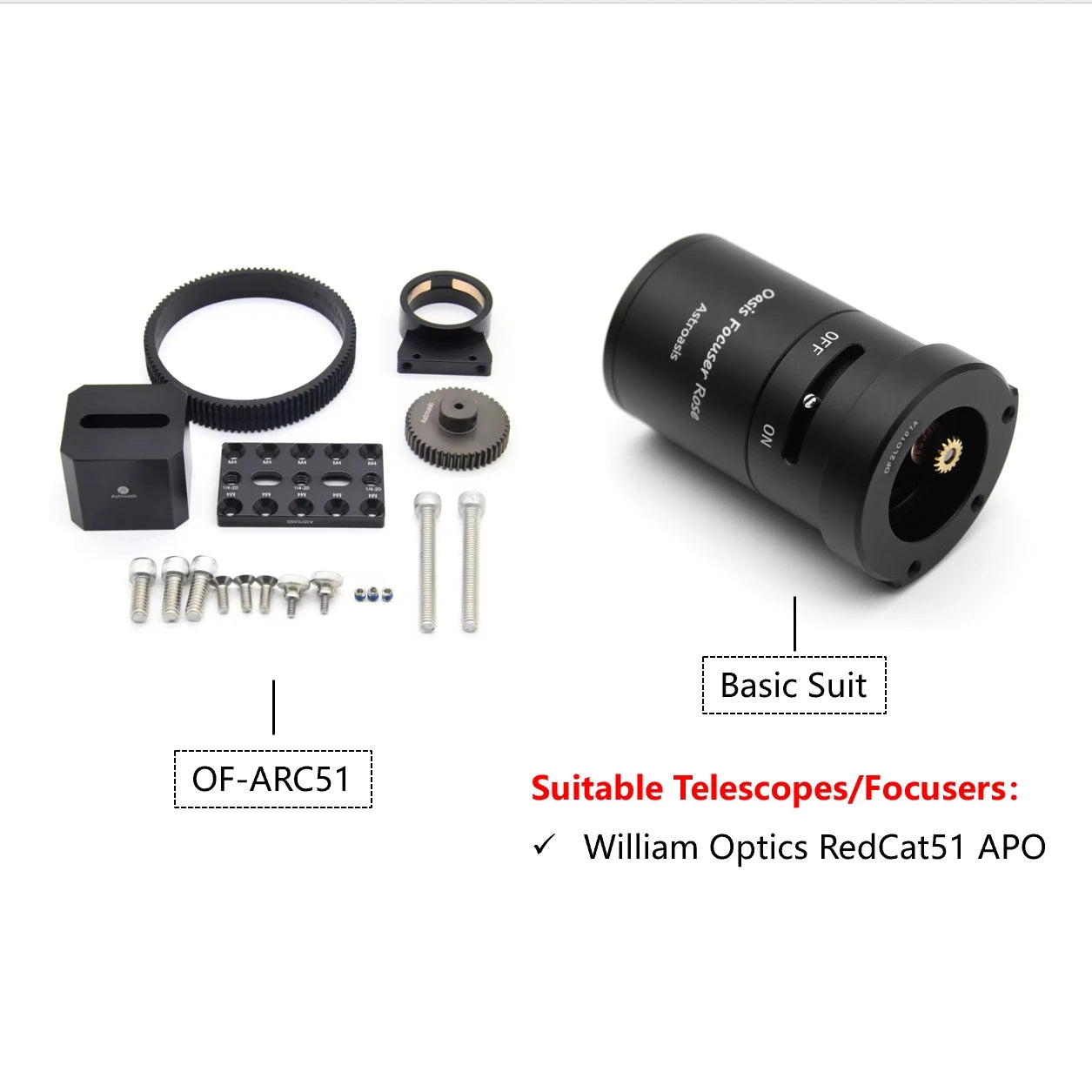

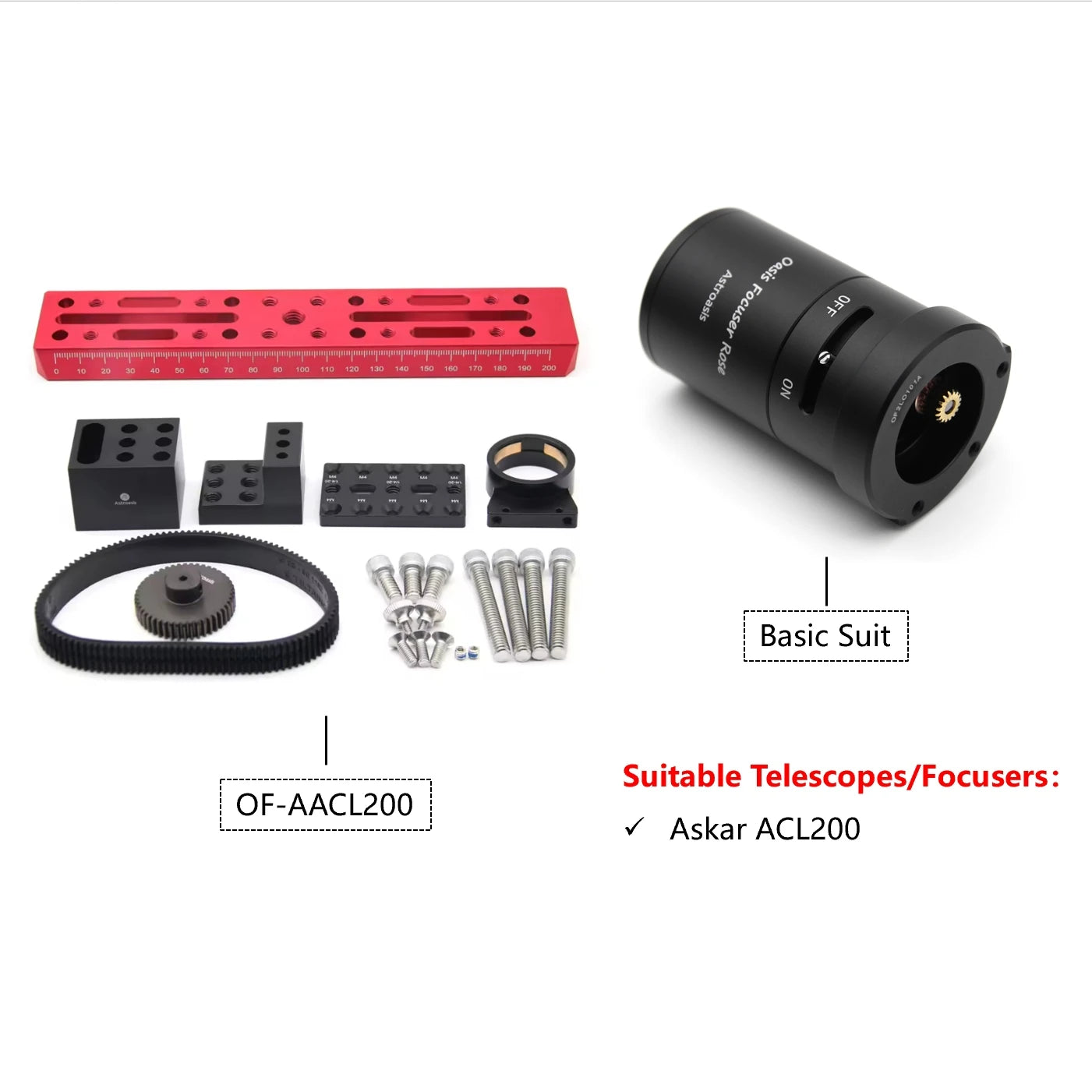

An important feature of the Oasis Focuser is that the main assembly and the clamp are separated. By using different clamps Oasis Focuser can be installed on a variety of telescopes. Not only can it be installed directly with a clamp, but it can also be installed on various models of telescope focusers via customized adapters.

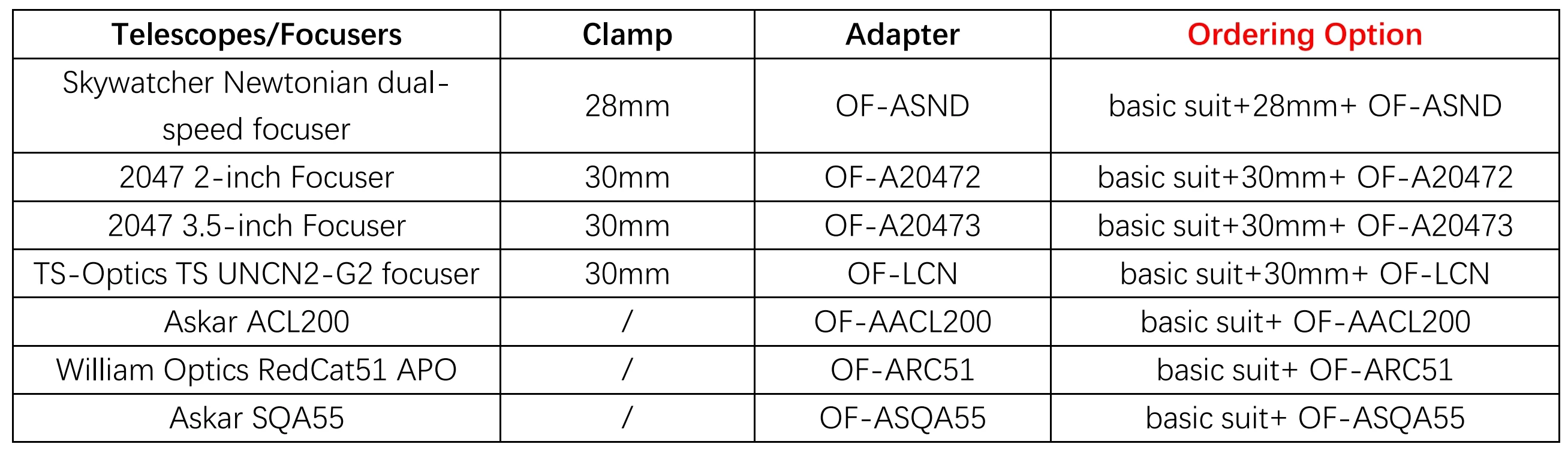

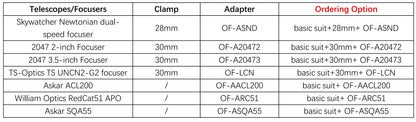

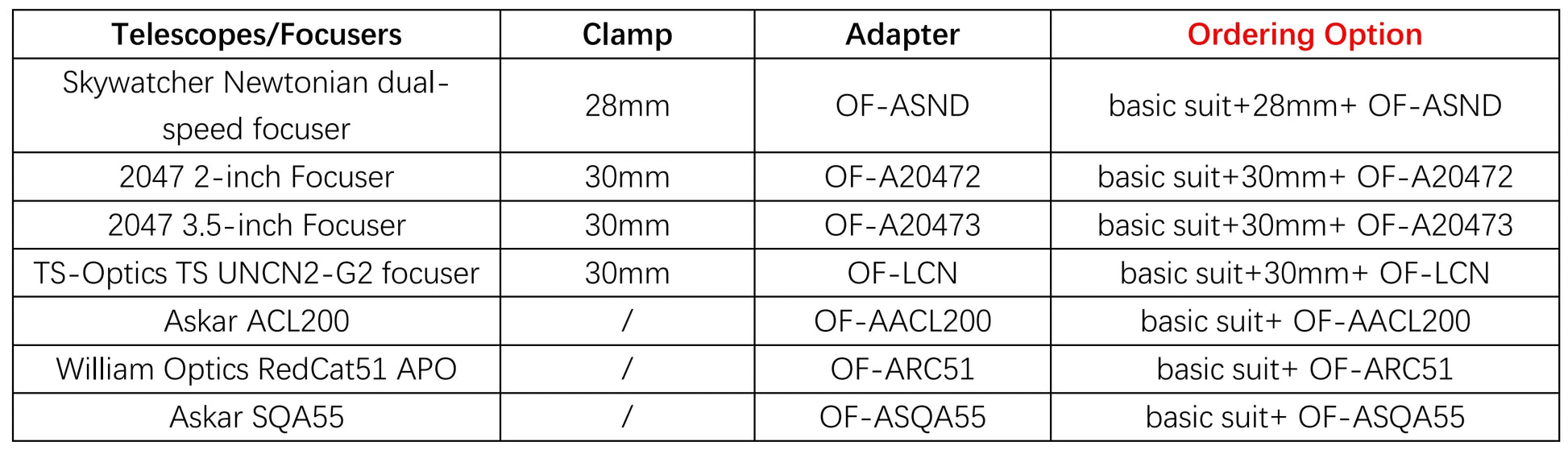

Please order the corresponding option according to your telescopes/focusers.
Installation:
For the above telescopes/focusers, the installation method is very simple. Please refer to the User Manual and Installation Reference Manual at the following address:
1. https://www.astroasis.com/download/files/focuser/Oasis_Focuser_User_Manual_EN.pdf
2.https://www.astroasis.com/download/files/focuser/Oasis_Focuser_Installation_Reference_Manual_EN.pdf

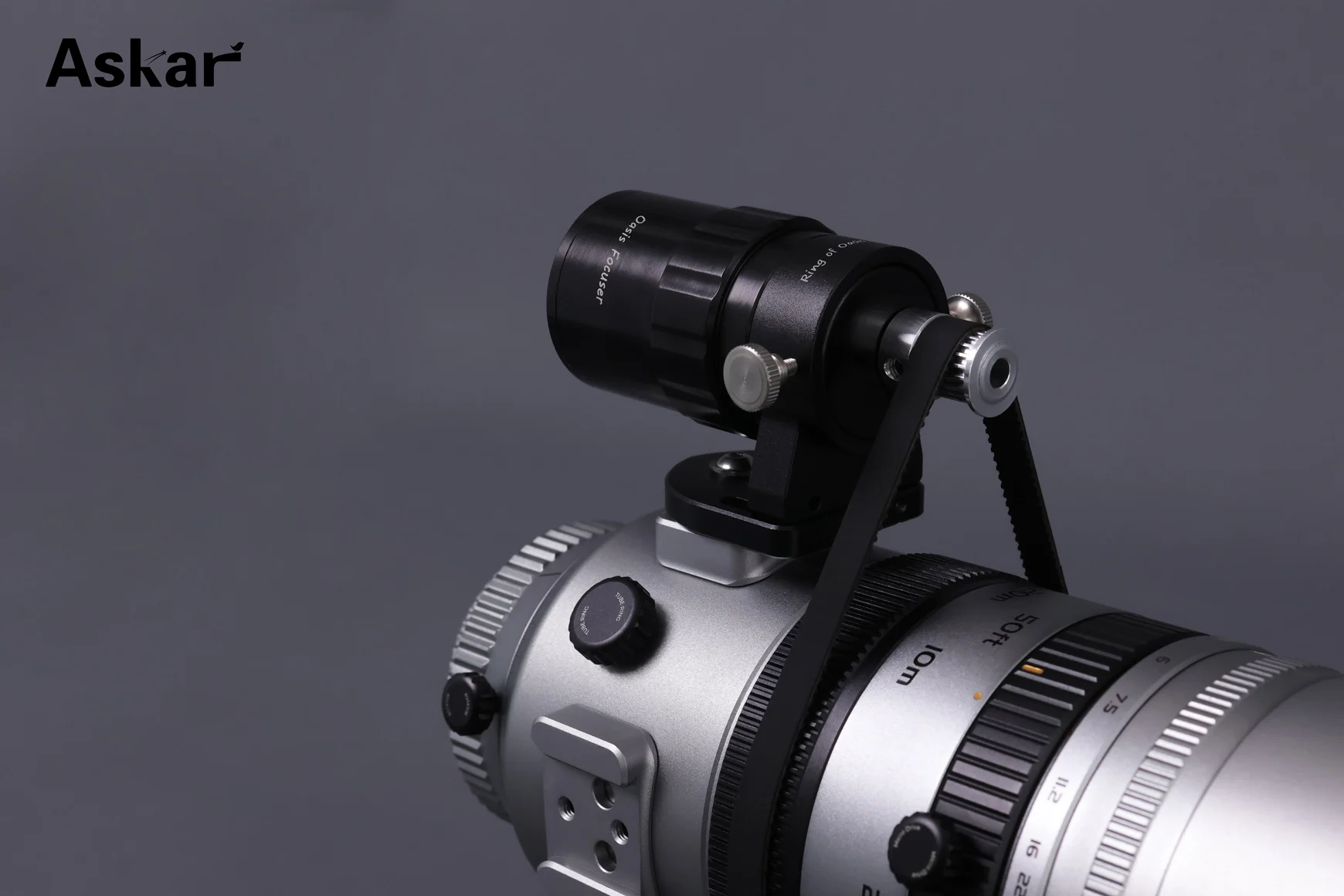

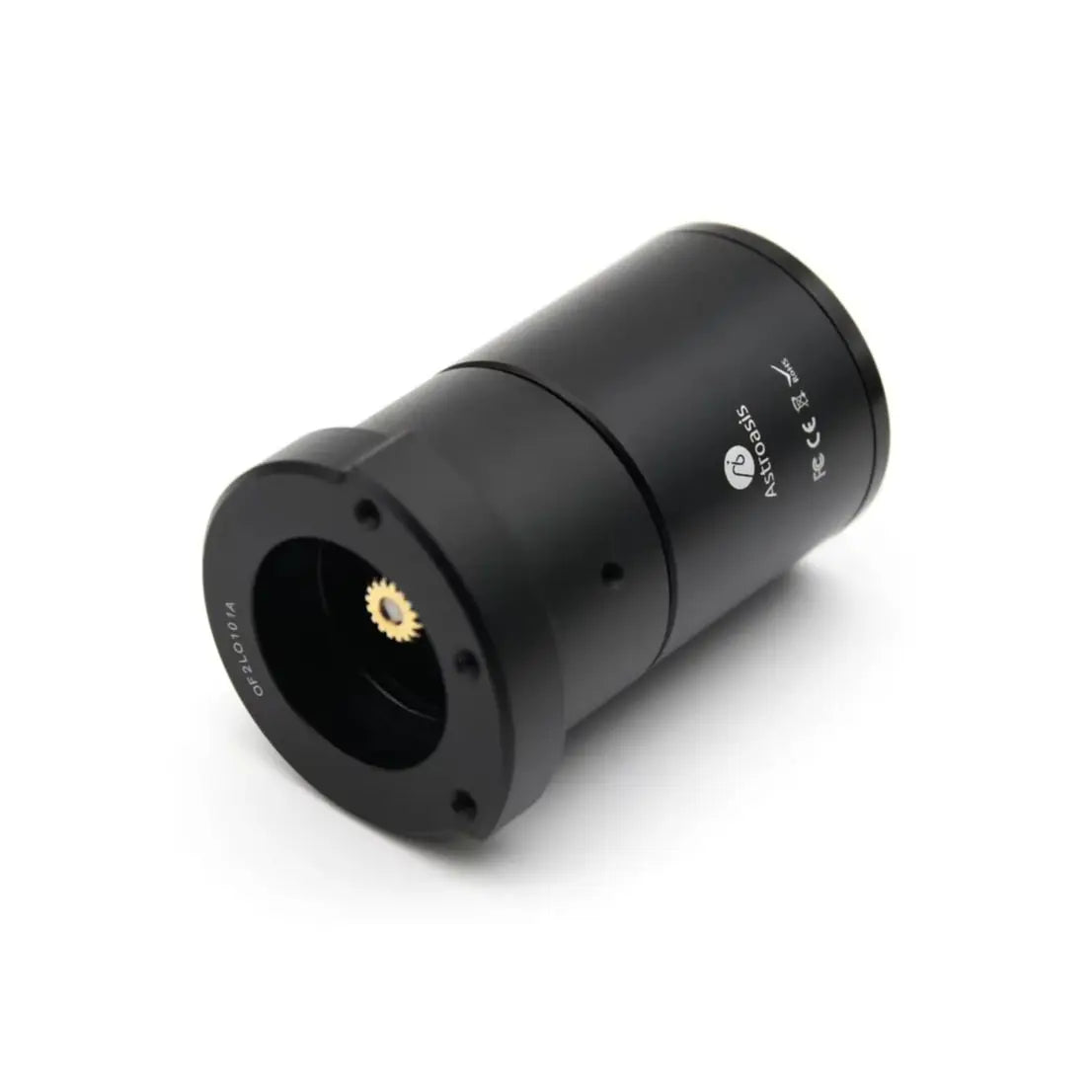

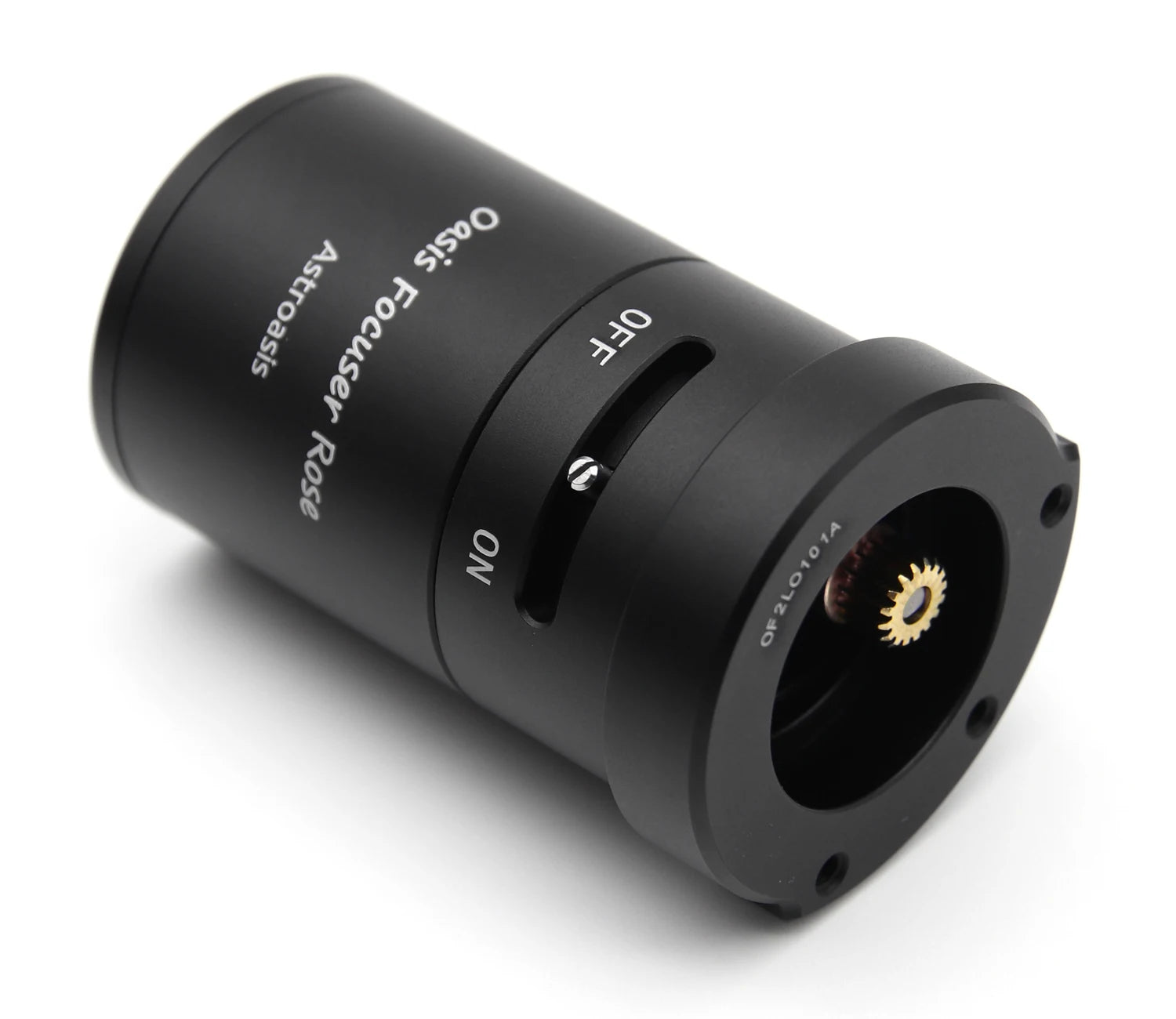

Product Pictures：
